MÜHLEN GEN 500
Packaging Filler & Carton Processing Machine
Corrugated Cardboard Processing & Filling
The MÜHLEN GEN 500 model, thanks to its advanced blade system, cuts cardboard into special shapes and transforms it into completely softened filling material.
Easy to Use
The model is extremely easy to use. To operate, simply turn on the power lever and feed the cardboard into the machine’s feeder compartment.
-
FAST AND QUIET
With a cardboard processing speed of 3000mm per minute, the model has a noise level below 55dB and also features a waste drawer at the rear.
-
AUTOMATIC CUTTING

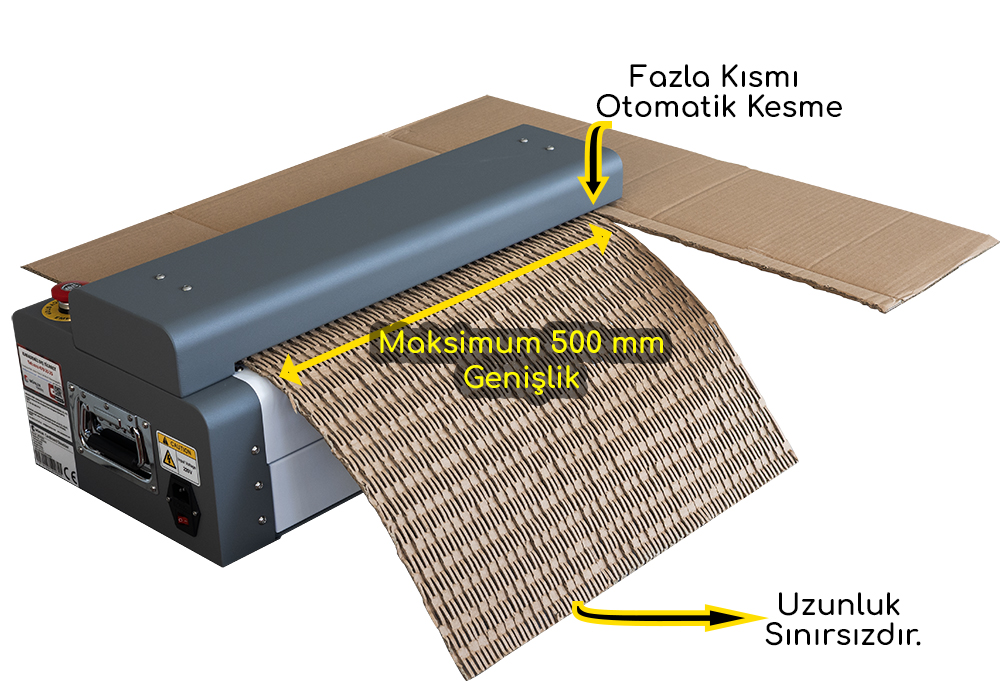

The MÜHLEN GEN 500 model automatically shears the excess part of cartons wider than 500 mm and separates it from the processed filler material.
-
POWERFUL ENGINE, POWERFUL BLADE
With a 400 W motor power, the model can rewind the cardboard with the reverse latch in case of a paper jam, as well as automatic feeding.
-
6mm THINNER CARTONS
The model can cut cardboard of 6mm and thinner thicknesses into honeycomb-like fillers and can cut cardboard to unlimited lengths.
-
SAFETY

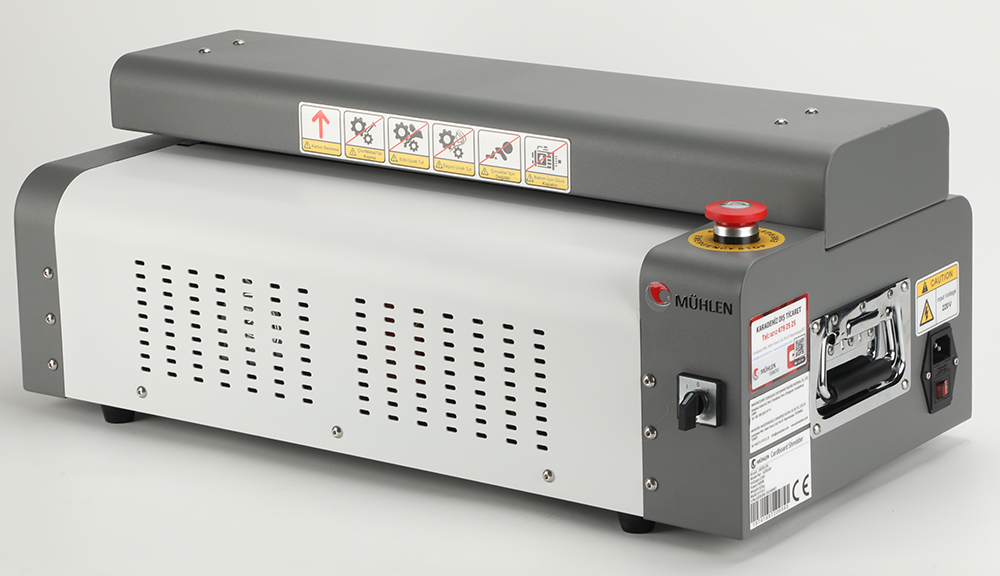

The model has an emergency stop button and the feed opening is 10 mm high, making it very difficult for fingers to enter this area.
Technical Specifications
-
Automatic carton box processing and filling material machine
-
High speed carton box processing and filling: 3 Meters/Minute
-
Up to 500 mm wide carton box processing and removal
-
Automatic cutting system for parcels wider than 500 mm
-
Feed opening height 6 mm (Maximum parcel thickness)
-
Transforming cardboard into soft and flexible material
-
Cutting Dimensions: 3 mm x 2 cm (Thinner Softer)
-

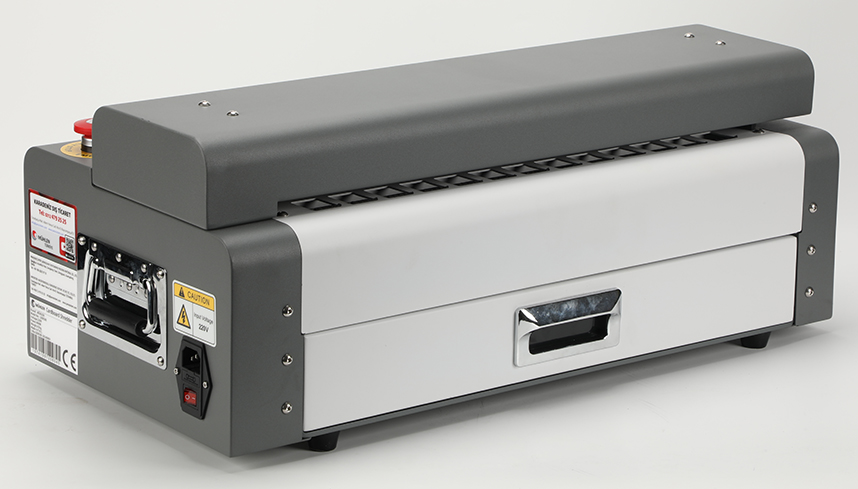

Removable and emptyable waste drawer box
-
All high quality steel metal interior and exterior
-
Processed materials: Corrugated cardboard (parcel), Cardboard
-
3 Step user / Off, Forward, backward (cancel)
-
Cutting blades made of hardened special steel
-

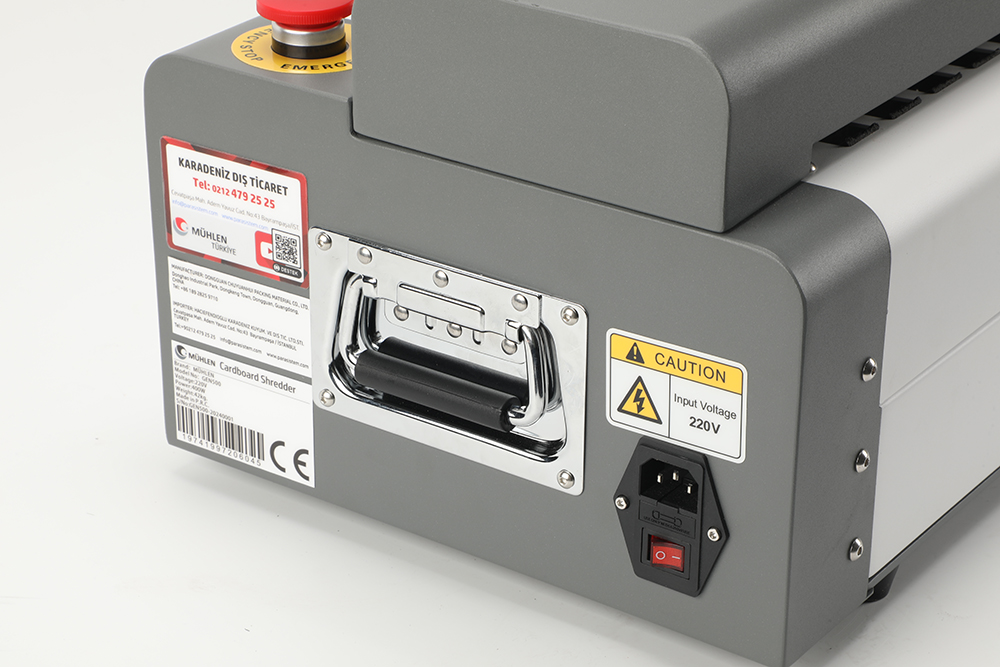

Steel carrying handles on both corners, attached to the chassis
-
Easy operation and maximum user safety
-
Economic cycle system (Easy amortization)
-
Very quiet Operating noise below 55dB
-
Emergency “stop”, stop button
-
Shipping and transportation box with foam
-
Compact and table-top operation
-
Nature and environmentally friendly system
-
400 Watt motor power
-
Instructions for use
-
24 Month warranty
Advantages
-
Automatic filling material making
-
High speed processing: 3 met./min.
-
Low operating noise: <55dB
-
Feed spout width: 500mm
-
Feed spout height: 10mm
Physical Properties
-
Machine Dimensions: 630 (W) x 310 (D) x 238 (H) mm
-
Wooden Chest Dimensions: 790 x 480 x 480 x 480 x 380mm
-
Machine Weight: 38 kg.
-
Gross Weight: 40 kg.
