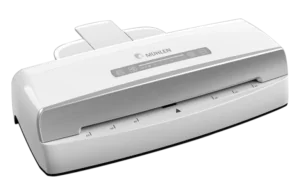

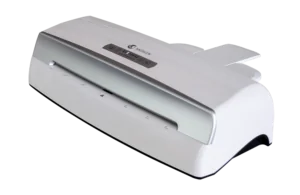

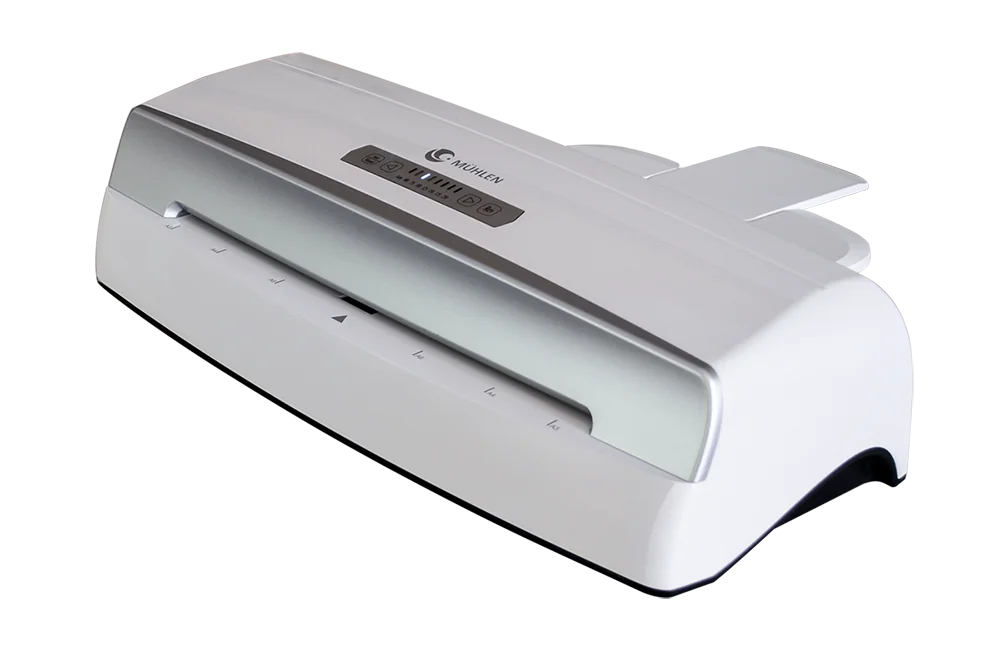

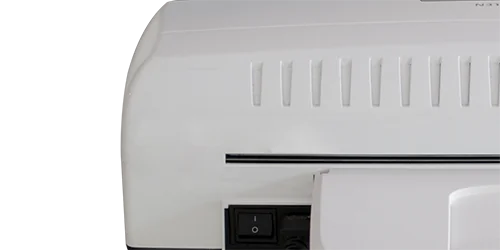

MÜHLEN VL 602
Fully Automatic Laminating Machine
High Jet Speed / Nothing Faster
The VL 602 model, manufactured by the Mühlen brand and twice as fast as its closest competitor, is the fastest laminating film machine in the world. With a laminating speed of 1500 mm per minute, this model can automatically detect the film thickness and adjust its speed accordingly.
Automatic Thickness Detection Sensor (Auto Sense)
Meticulously engineered with high German precision, the Mühlen VL 602 laminating machine is equipped with six specially designed roller cylinders that ensure smooth and durable lamination in a single pass. Additionally, users can manually adjust the film thickness via the touch control panel if desired.
Special Design 6-Roller System
Thanks to its special 6-roller design, the friction and bonding force during lamination are significantly increased, while the bonding temperature is significantly reduced. This prevents both the laminated documents and the film from being damaged by high heat, and also eliminates issues like film cracking, wrinkling, or burning. Furthermore, the extended contact time provided by
-
A3 SIZE & INTENSIVE USE

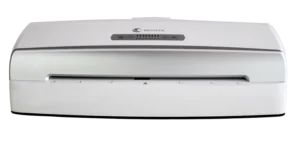

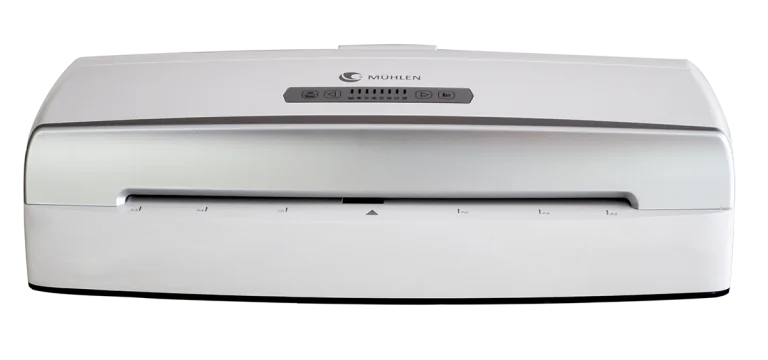

The Mühlen VL 602 model with A3 size, 334 mm laminating film feed opening has a structure developed for strong and glossy coating of documents, photographs, drawings and documents of all sizes A3 and smaller.
-
DOES NOT BURN, DOES NOT CREASE, DOES NOT SQUEEZE
Equipped with Anti-Jam systems, Mühlen VL 602 does not burn, compress or wrinkle laminating films. From 75 microns (one side) to 250 microns (one side), the model treats all laminating films with the same precision and ensures smooth films without the slightest wrinkle.
-

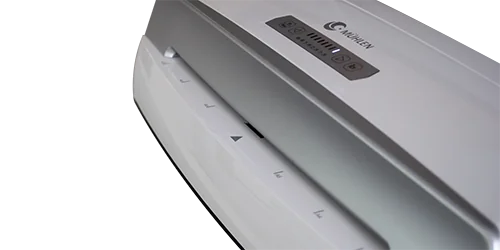

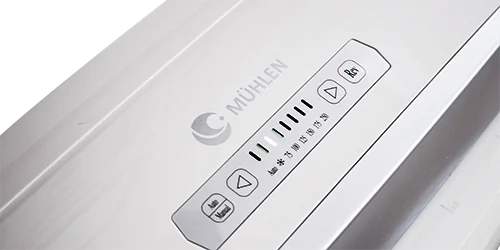

TOUCH KEY PANEL & LED WARNING SYSTEM
The Mühlen VL 602 model features an aesthetic touch keypad. Elegantly designed down to the smallest detail, it also alerts the user when it is ready with a green LED light and “beep” sounds.
-
FAST WARM-UP TIME | HOT & COLD LAMINATION
When you start the machine, the Mühlen VL model is ready in just seconds, without the user having to wait for minutes anymore. Depending on the thickness of the laminating film, it has only a maximum warm-up and waiting time of 30~60 seconds.
-
75~250 MICRONS (SINGLE SHEET)
The model is developed for laminating films between 75~250 microns (single sheet). In addition, the model detects the film thickness by itself in automatic mode and automatically adjusts the temperature and lamination speed accordingly.
-
MAXIMUM SAFETY

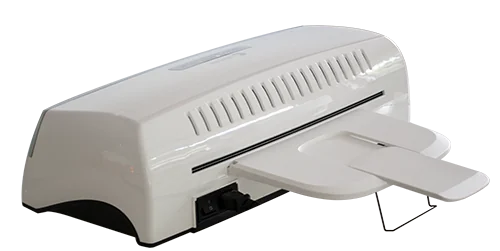

The Mühlen VL 602 model has an automatic rewinding and anti-jamming system in case of laminating film jamming. In addition, even if the model laminates at the highest temperature, it reflects this to its own body and the external environment to a minimum extent. In this way, user safety is maximized.
-
AUTO SENSE, REWIND & AUTOMATIC SHUTDOWN
Auto Reserve feature; If there is incorrect feeding or if the document has not completely passed through the device within the normal working time, it detects this situation and automatically reverses the document until the jam is eliminated by giving a warning.
Rewind Feature; model rewind will automatically direct the jam, as well as the user can rewind according to his own request with the help of the touch button.
Auto Power Off; Mühlen VL 602 model is not used for 30 minutes, “auto power off” feature puts the device in standby mode.
Technical Specifications
-
Laminating Film Covering Speed: Maximum 1500 mm/minute
-
Number of Rollers & Structure: 6, “Roller Fricition”
-
Automatic Film Thickness Detector: Yes (auto sense)
-
Film Coating Sizes: A3 and smaller document sizes
-
Suitable Laminating Film Thickness Ratios: 75~250 Micron x2 (Single Sheet)
-
Film Coating Inlet Dimensions “mm”: 334 mm inlet opening width
-
Power-on Warm-up and Preparation Time: 30~60 seconds
-
Automatic Switch to Standby Mode: Yes (after 30 min.)
-
Type and Purpose of Use: Intensive Use Throughout the Day
-
Film Coating Modes; Hot and Cold Lamination
-
Film Protection Systems: Anti Jam-StickFree (Non-Burning, Non-Stick)
-
Feed Detection System: Automatic (Works automatically when the document is placed.)
-
Types of Film Capturable: Photo, Document, Card, document, etc...
-
Lamination Film Output: Glossy, Damage Free, Wrinkle Free
-
Maximum Document/Photo thickness: 1 mm
-
Different Lamination Speed System: Yes, Automatic
-
LED light and Audible Warning System: Yes
-
Manual Heat Adjustment System: Yes, Touch
-
Maunel Rewind Feature: Yes, Touch
-
Keypad panel Touch
-
Heat indicator panel: LED light
-
Warranty Period: 24 Months
Advantages
-
Laminating Film Covering Speed: Maximum 1500 mm/minute
-
Number of Rollers & Structure: 6 Pcs, “Roller Fricition”
-
Automatic Film Thickness Detector: Yes (auto sense)
-
Film Coating Sizes: A3 and smaller document sizes
-
Suitable Laminating Film Thickness Ratios: 75~250 Micron x2 (Single Sheet)
-
Power-on Warm-up and Preparation Time: 30~60 seconds
-
In case of jamming and misfeeding: Automatic Rewind (auto reserve)
-
Automatic Switch to Standby Mode: Yes (after 30 min.)
-
Type and Purpose of Use: Intensive Use Throughout the Day
Physical Properties
-
Parcel Dimensions: 583*216*283mm
-
Machine Dimensions: 480*203*127 mm
-
Gross Weight: 8.5kg.
-
Net Weight: 6.7kg.
-
Power Consumption 1400 Watt
