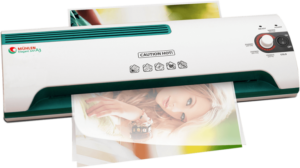

MÜHLEN 3AF
A3 Laminating Machine with 4 Rollers
Hot and Cold Lamination
The Mühlen Elegant 3AF Laminating Machine is designed for professional, intensive use, capable of quickly and flawlessly laminating A3 and smaller-sized documents using hot or cold lamination.
Special 4-Roller Structure
The Mühlen 3AF model laminating machine performs perfect lamination in a single pass for documents, photos, or cards sized A3 or smaller, using its specially designed 4 rollers.
Fast and Professional
With its fast heating time, the model saves time for the user and laminates documents between 75-150 microns (per sheet) at a speed of 350 mm per minute. The model, which can apply both hot and cold PVC film, also allows manual temperature adjustment through its control setting.
-
A3 SIZE DOCUMENT OVERLAY
The Mühlen Elegant 3AF laminator is designed to perfectly laminate documents, documents, pictures and cards in sizes A3 and smaller. It has an automatic anti-jam system and an anti-jam and release lever for every situation.
-
PERFECT COATING WITH 4 CYLINDERS
The 3AF model has two rows of specially made rollers, two at the front and two at the back. This makes the lamination process much faster and smoother. The two rollers at the front ensure that the lamination is coated at the required temperature, while the other two rollers at the back help to cool the film and ensure smooth shaping.
-
MANUAL TEMPERATURE ADJUSTMENT (75~150 MICRON)
The model with 75 to 150 micron lamination coating feature has a manual heat adjustment latch. In this way, you can apply the right heat setting to laminating film of any thickness to produce perfect coatings.
-
HIGH SPEED LAMINATION
With a lamination coverage of 3.5 meters per minute, the model is built to cover documents of all sizes for intensive use. Mühlen Elegant 3AF model has a light warning system to warn the user. In this way, the device, which reaches the required amount of heat, notifies that it is ready for lamination by turning on a green light.
Technical Specifications
-
Lamination Coating Sizes : A3 or smaller documents, pictures, cards...
-
Mechanical temperature adjustment and the ability to warn the user when the set temperature is reached.
-
4 special production rollers for perfect lamination film coating.
-
Indicating that the machine heat is ready with a green light.
-
Maximum applicable film thickness: 2 X 150 Microns = 300 Microns.
-
Minimum applicable film thickness: 2 X 75 Microns = 150 Microns.
-
Hot and cold lamination coating capability.
-
Lamination coating speed: 350 mm / Minute.
-
Automatic anti-pinch system.
-
Time to reach maximum temperature 3~5 minutes.
-
Type of lamination: Document, picture, card etc..
-
Warning and work lights : Yes
-
Automatic rewind in case of jamming.
-
Manual disengage lever to prevent jamming
-
Sensor type : Automatic PVC film removal
-
Heat detection temperature safety sensor: Yes
-
Automatic start stop : Yes
-
Operating Voltage : 220 - 240 V - 50 H
-
24 Months Full Warranty
Advantages
-
A3 and smaller documents, pictures, cards...
-
4 special production cylinders
-
Max:2 X 150 Microns = 300 Microns.
-
Min:2 X 75 Micron = 150 Micron.
-
Hot and cold lamination
-
Lamination coating speed: 350 mm
Physical Properties
-
Dimensions 470 x 190 x 110 mm.
