MÜHLEN TCM 77
Glue Thermal Binding Machine (Compact)
Professional Binding
The model, capable of professionally binding books and similar documents quickly using “HOTMELT” (heat-sensitive) glue, features a highly compact structure for desktop use. All necessary materials and a complimentary pack of “Hotmelt” glue are included with the product.
User Panel
Equipped with a numeric LCD screen and setting buttons for temperature control, the model informs the user by displaying both the current and set temperatures. Built entirely with a metal/steel body and internal structure, the unit is designed for flawless long-term operation.
Automatic Binding
The MÜHLEN TCM 77 model automatically performs milling, gluing, and pressing operations, delivering excellent quality binding for both soft and hardcovers.
-

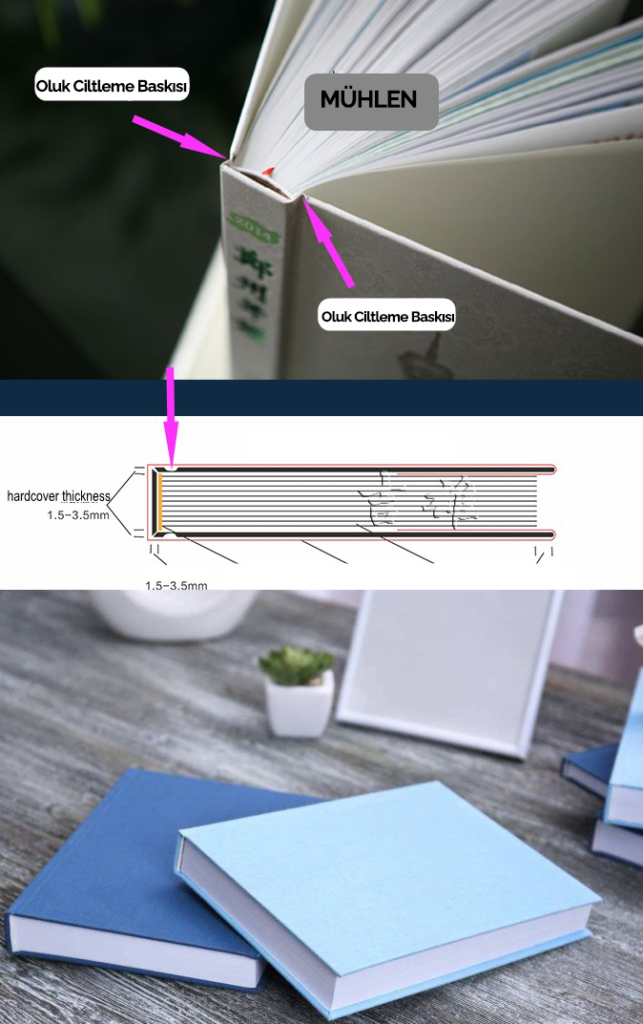

SOFT & HARD COVER
Another distinctive feature of the model is that it is one of the rare machines that can bind soft or hard covers. While the user can bind normal book covers, the user can bind hard and thick covers similar to organizers.
-
500 SHEETS BINDING
It has the ability to glue bind A4 and smaller documents (420x297mm). The model can also bind books and notebooks up to 500 sheets (40mm) thick at a time. In addition, it reaches the temperature level required for binding in an average of 5 minutes.
-
EASY PRACTICAL USE
With the user-friendly MÜHLEN TCM 77, it is extremely easy to make strong and aesthetic bindings. In addition, installation, operation and adjustment videos have been uploaded to the internet to inform the user. The model performs many operations automatically and has a large glue reservoir.
-

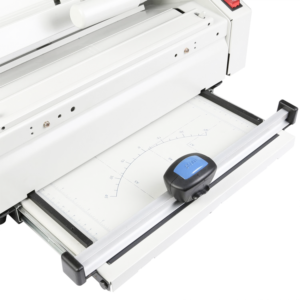

DOCUMENT CUTTING SYSTEM
MÜHLEN TCM 77 model has many more superior features than its competitors. One of them is the 4-in-1 guillotine machine integrated into the machine. It has 4 different blades such as straight cut, wavy cut, serrated cut and marking the cut.
Technical Specifications
-
Solid glue heat binding machine
-
Two press buffers (Hot/Cold)
-
Binding A4 and smaller documents
-
Soft & Hard cover binding
-
Thermal binding up to 500 sheets
-
Max. binding size: 420x297mm
-
Type of glue used: "HOTMELT"
-
Guillotine machine with 4 different cuts
-
1 extra sachet of gift glue
-
Temperature adjustment buttons and LCD display
-
Digital adjustment system (maxs.190°)
-
Fast warm-up time (Average 5 min.)
-
Excellent milling and gluing
-
Metal/Steel body and internal parts
-
Automatically operating milling cutter
-
Automatically operated glue head
-
Skin buffer system with double heater
-
120 book binding per hour
-
3 Stop print binding arm
-
Milling and glue print adjustment
-
24 Month warranty
Advantages
-
Fast and easy to use
-
Soft & Hard cover
-
Glue thermal binding
-
4 different cutting guillotines
-
A4 and smaller
Physical Properties
-
Machine Dimensions: 670x380x410mm
-
Parcel Dimensions: 750x450x475mm
-
Net Weight: 33kg.
-
Gross Weight: 38kg.
