Mühlen RD 600XH
Thermal (Clamshell) Binding Machine
Binding Up to 480 Sheets
With compression and heating functions, the MÜHLEN RD 600XH can bind up to 480 sheets using different heating/binding times (60s-120s-210s).
Standby Mode
The model can automatically switch to standby mode (30 Min) and includes a fan-assisted cooling chamber for the bindings processed with the hot press to cool down.
-
BINDING UP TO 480 PAGES
The Mühlen RD600XH is capable of binding 480 documents A4 and smaller in a single run. With 3 levels of dwell time, the model alerts the user when it reaches the best binding level after the required time
-

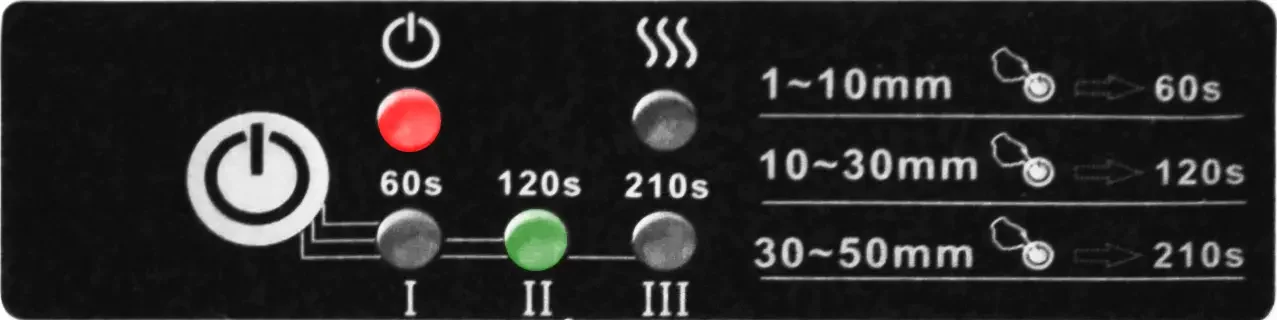

ADJUSTMENT FUNCTION WITH DIGITAL DISPLAY
The Mühlen RD600XH model, which can easily adjust all its functions from the digital display, has a 3-stage heat standby setting. After 60 seconds between 1~10 mm, 120 seconds between 10~30 mm and 210 seconds between 30~50 mm, the machine stops heating by warning the user.
-
BOOK QUALITY BINDING
The Mühlen RD600XH offers book-quality binding thanks to its thermal binding material. It can heat bind up to 480 sheets and has a warm-up time of approximately 3 minutes.
-
SPECIAL PRESSED HEATING FURNACE
The RD600XH model has a printed and pressed warm-up and binding drawer. It also has a cooling and holding drawer for the book that has reached the required warm-up and binding level. In this way, the document to be bound is warmed up and cooled down to the optimum level.
Technical Specifications
-
Paper Entry Width: 320 mm
-
Maximum Binding Capacity (Single Binding): 480 Pages / 50 mm
-
Estimated Warm-up Time: 3 Minutes
-
Binding Loops: I-II-III- / 60s - 120s - 210s
-
Ready Indicator: Sound and Signal
-
All Stainless Metal Body and Components
-
LED interface: Yes
-
Automatic Detection: Yes
-
Power Protection Auto Shutdown: Yes (30 Minutes)
-
Separate Drawer Chambers for Warming and Cooling
-
Oven Mouth Opening Lever Assist
-
Estimated binding time 1 to 3.5 minutes
-
24 Months Full Warranty
Advantages
-
Small Size
-
Easy and Simple Operation
-
Book Binding Quality
-
Sturdy and Tear-proof Binding
Physical Properties
-
Power Consumption: 100 W
-
Suitable Ambient Temperature: 150 +-10°
-
Measurements: 380 x 230 x 180 mm
-
Weight: 4.1 Kg.
