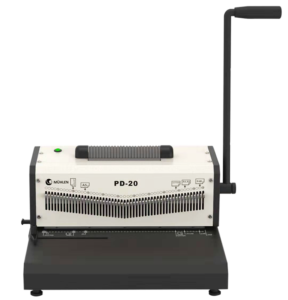

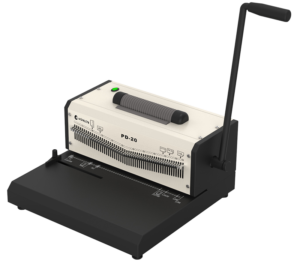

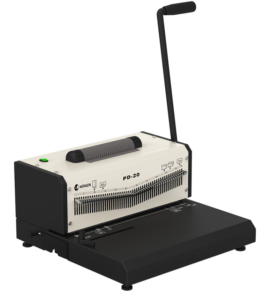

Mühlen PD 20
Professional Spiral Binding Machine
Fully Professional
MÜHLEN PD 20 is a fully professional coil (spiral-shaped) binding machine. Featuring 53 free pins (independent punching system), the model comes with a 5-year full warranty on its punching blades. It has the power to punch 20 sheets (80gsm) at once and offers a binding capacity of up to 500 sheets.
315mm Feed Tray
With its electric motor-driven binding system, users can bind book-sized documents in seconds. The MÜHLEN PD model can punch and bind documents up to F4 size (larger than A4), and is built entirely from metal body and mechanisms to ensure long-lasting durability.
-
UP TO 500 LEAF BINDING CAPABILITY
Thanks to its electronic motor and spool, MÜHLEN PD 20 model is capable of spiral (spring-like) binding up to 500 sheets. The binding motor, which operates with the power button, can bind and bind hundreds of pages in seconds with excellent quality.
-
53 FREE PIN SYSTEM
The user can bind as often and as large as he wishes, using any binding material. MÜHLEN PD 20 has a 53 free pin system for this purpose. This allows the user to drill holes between 1~53. The model with 2:1, 3:1, 4:1 (4/3/2 holes per 1 inch) hole punching ratio is the most professional spiral binding machine that can punch 1~53 holes at the same time.
-
PUNCH 20 SHEETS OF PAPER AT A TIME
MÜHLEN PD 20 model, thanks to its powerful punching blades, can easily punch 20 pieces (80gr) of paper at a time with the help of a manual handle. Punching blades with Φ 3.6 mm circular hole diameter opening feature are guaranteed for 5 years against fabrication and production defects. In addition, thanks to the free pin system, the user can easily eliminate the holes on the edges of the paper.
-
HIGH SKIN QUALITY
MÜHLEN PD 20 is specially designed for smooth binding in any size, developed for home, workplace and schools. The PD 20 model adds a sleek and professional design and look to presentations, reference documents, proposals and many other documents. MÜHLEN PD 20 is warranted for 5 years for the punching blade and 2 years for other parts and components.
Technical Specifications
-
Drilling Capacity: 20 Sheets (80 g)
-
Hole Pin System: 53 Free Pins
-
Number of Holes Between 1~53 Pieces
-
Appropriate Document Size: F4 (Larger than A4)
-
Binding Material: Coil
-
Binding Capacity: Unlimited Size
-
Binding Style: Electronic Motor Roll
-
Binding Binding Capacity: 1~500 Sheets
-
Binding Type: Spiral (Spring-like)
-
Hole Ring Size: Φ 3.6 mm
-
Marjı: 2,5-4,5-6,5 mm
-
Knife Guarantee: 5 Years
-
Mechanical Warranty: 2 Years
Advantages
-
53 Free Pin System
-
Punching up to 20 leaves at a time
-
Unlimited Binding Capacity
-
Spiral Clamping Type
-
Electric Tethering
Physical Properties
-
Outer Box: 535x345x490 mm
-
Inner Box: 500x315x470 mm
-
Machine 460x400x490
-
Gross Weight 16.5 kg.
